Product introduction

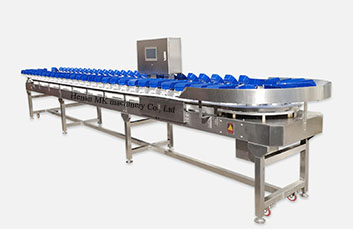

Multi-grades weight grader machine is mainly used in various automated assembly lines, aquatic products, food and other industries. It is used to sort products into multiple levels by product weight. It is widely used in online weight sorting in the pharmaceutical, food, aquatic, and poultry industries. It can directly replace manual weighing to achieve the purpose of improving production efficiency, improving accuracy, reducing labor and reducing costs.

Application:
1. Aquatic product classification: fresh fish, shrimp, abalone and other aquatic products;
2. Poultry product classification: chicken wings, chicken legs, chicken feet, whole chickens, ducks and other poultry products;
3. Fruit and vegetable classification: apples, oranges, potatoes and other fruit and vegetable products.

Features:
1. Use imported special dynamic weighing unit to realize high-speed and stable measurement;
2. large-size color touch screen interface, simple operation and intuitive display;
3. Fully automatic sorting method to avoid human error;
4. Automatic zero point analysis and tracking system to ensure stable detection;
5. Built-in temperature noise compensation system to ensure reliable data;
6. Powerful data statistics function, record daily inspection data, can store 100 sets of product data, convenient for customers use, and sudden power failure data will not be lost;
7. The conveying system adopts frequency conversion speed regulation mode, which is convenient for front and rear speed coordination;
8. Dynamic weight compensation technology, the detection data is more real and effective;
9. Self-fault diagnosis and prompt function, convenient for maintenance;
10. Use reinforced stainless steel 304 frame, in line with high standards and HACCP specifications;
11. Simple mechanical structure, which can be quickly disassembled for cleaning and maintenance;

Technical parameters
Model                     MK06S             MK06M             MK06L
Sorting grades           5-12                 5-12                    5-12
Sorting speed       320 pcs/min       240 pcs/min          160 pcs/min
Sorting accuracy        0.1g                  1g                      1g
Sorting error           ﹤±1g              ﹤±5g                  ﹤±10g
Weighing range      5g～200g          50-1000g             50-5000g
Weight sensor           HBM                  HBM                 HBM
Materials                 SUS304              SUS304             SUS304
Voltage                               AC220V/50HZ
Power                     500W              500W                   2500W
Protection level         IP65                  IP65                      IP65
Working environment temperature：  0-40℃
Humidity：                                     30%-95%
